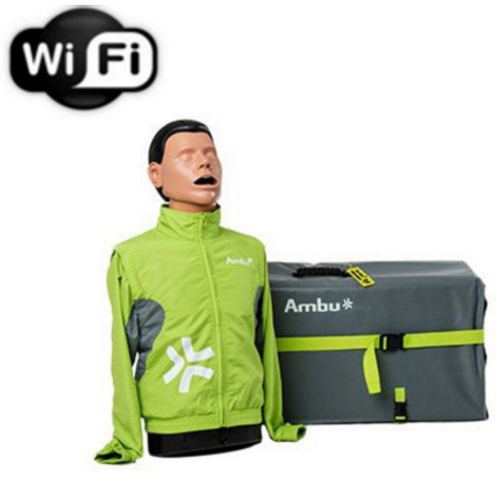

Ambu® Man Airway Wireless

Ambu Man Airway Wireless Next Generation

The Ambu Man Airway W torso offers the possibility to intuberate using state-of-the-art technology. To create more variation during training, the flexibility of the chest can be adjusted using one simple screw, to simulate different body types. The Airway Man W is equipped with a monitor in the belly of the manikin, which displays compression measurements. Ventilation of the manikin is only possible using a breathing balloon. The carrying case can also be used as a training mat.

Train in a realistic environment

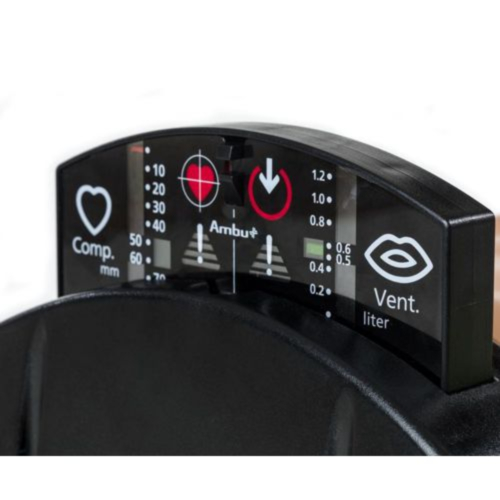

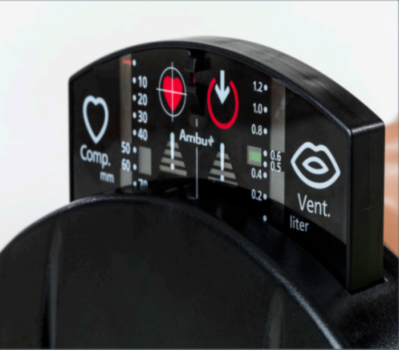

The Ambu Man W (Wireless) models are equipped with a mechanical control device in the stomach. Also, the doll can connect wirelessly via the Ambu Manniin Management Module. This module makes it possible to connect wirelessly from any type of smartphone, tablet or PC directly to the manikin.  The installation of additional software or other operating is not necessary. Because no wires or cables are needed, it is possible to provide training in a more realistic environment, greatly influencing the degree of freedom during training.

Additional features through wireless connection

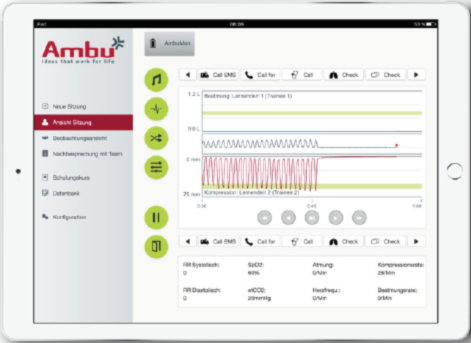

The new module of Ambu makes it possible to play audio files during training, such as breathing. In addition, various incidents can be added to the resuscitation course, for example, "112 bubbles" or "head tilting". The Ambu Mannekin Management system is independent (Windows, Apple, Android, IOS, Ubuntu, and Linux) and works in any web browser (Internet Explorer, Chrome, IE, Safari, and Firefox). The module provides wireless use and monitoring during the course and allows the data and information from the courses to be stored and collected.

Characteristics:

• Ambu's unique, hygienic system
• Ventilation by means of a respiratory balloon
• Intubation possibility
• Closure of lungs is not possible (trachia ends for lung branching)
• Exercise on different types of body build through viable chest stiffness
• Pulse / heart rate can be displayed manually
• Pulse / heart rate is displayed automatically with the correct heart massage
• Records ventilation volume, breast compressions in mm, stomach upset and incorrect hand positioning, these can be read on the mechanical control instrument
• Wireless connection to your computer, tablet or phone

What's Included

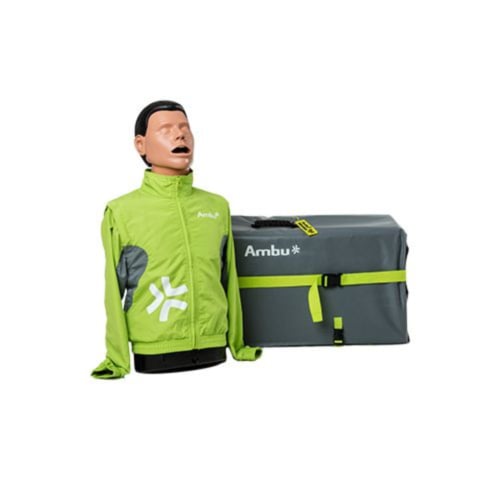

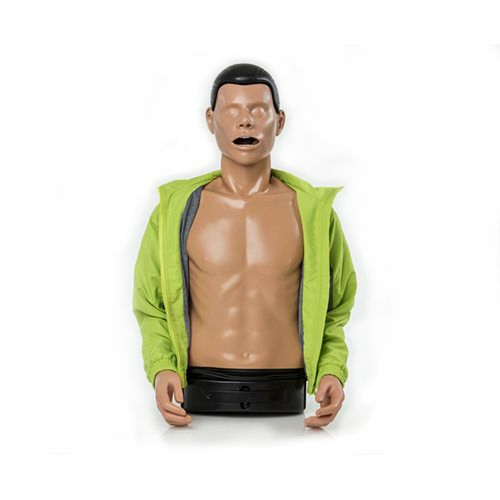

Ambu Man Airway Wireless Torso
1 facial skin

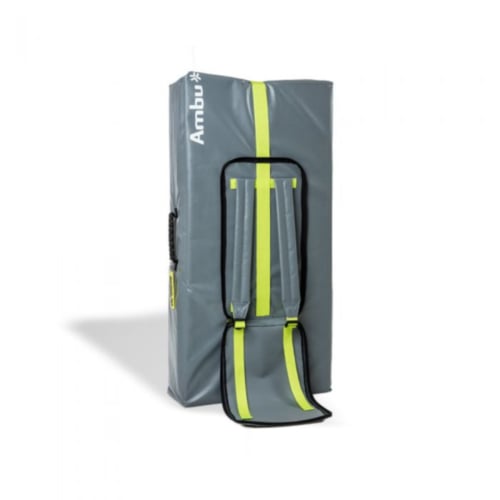

Carrying bag
Clothing
Internal adapter

Optional Extras

Arms (234000704)
Legs (234000786)
Ambu Mark IV Breathing Balloon Adults (304001000)

Specifications

Dimensions

Length of torso: 80cm

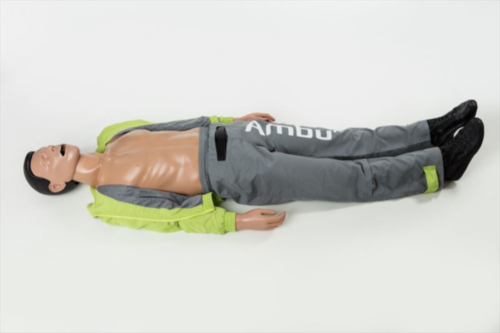

Full body length: 170cm
Weight torso without bag: 12kg
Weight full body with bag: 17kg

Warranty

2 years

Materials

Base Unit: Polyethylene
Instrument part: ABS Plastic
Head: PVC, hard
Chest and face: PVC, soft
