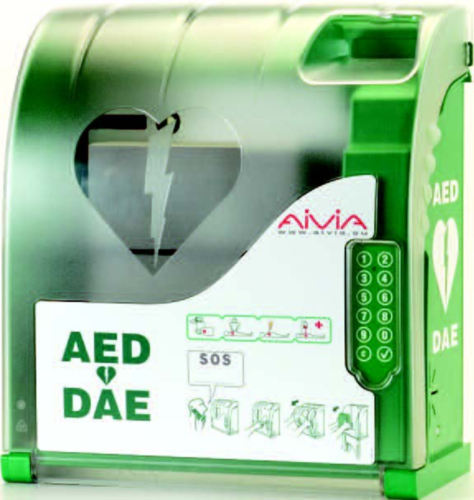

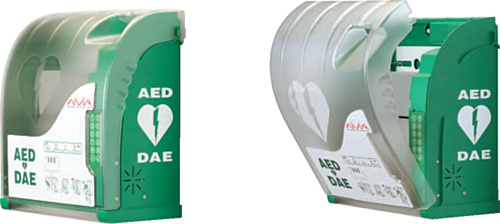

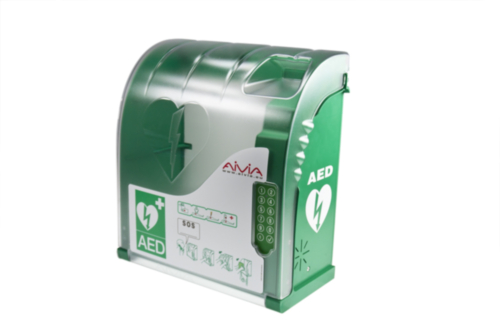

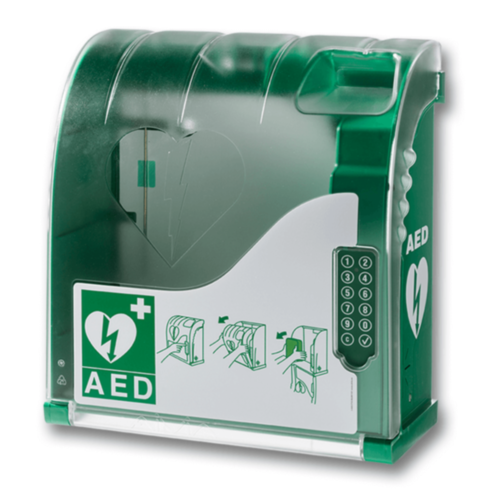

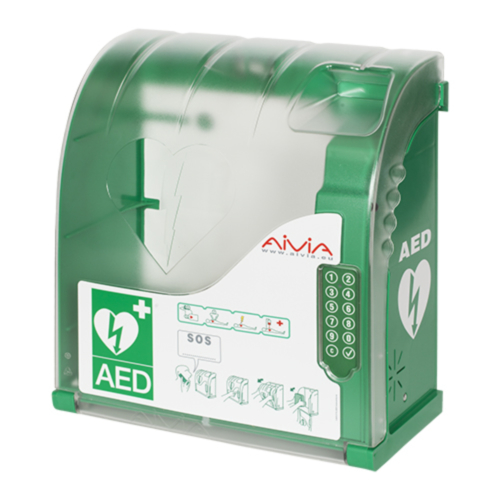

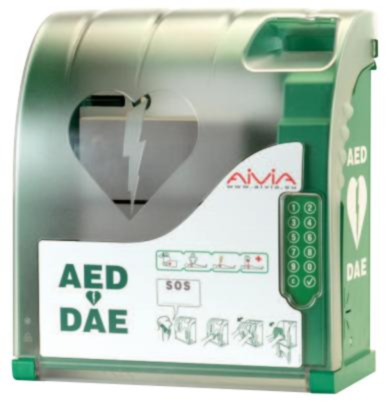

DefiSign / Aivia 210 Outdoor Cabinet

DefiSign / AIVIA 210 - The lockable outdoor defibrillator cabinet

The DefiSign / AIVIA 210 AED cabinet with pinlock is an outdoor cabinet which could also be installed indoors. Combining strength and lightness Aivia is composed of two distinct parts:

• The polycarbonate cover
• The ABS base

These materials are well known in areas such as the automobile industry, Polycarbonate is used in vehicle headlights and ABS for car bumpers, so has excellent shock resistance properties.

Markings

The front of the cabinet displays the survival sequence via three clear pictograms with instructions for use.

The ILcor International logo is displayed on the sides of the cabinet, AED (English) and DAE (Latin) with the defibrillator logo (a heart with an electric spark running through it).

Features

• Day/night LED lighting of the AED compartment with automatic luminosity detection.
• Opening of the AIVIA 210 is motorised and access to the AED secured by digicode. Optionally, the digicode may be replaced by a proximity badge reader (RFID).
• Opening the cover automatically triggers a visual alarm (flashing red leds).
• The optional audible alarm, is also activated when the cover opens, this can be disabled if not required.
• The heating is connected to a temperature sensor, enabling it to be activated when a minimum threshold of 10ºC is reached.
• The ventilation fan keeps the compartment cooler on warmer days.
• A visual alarm using red leds signals abnormalities (temperature out of range).

Location

Please note that the cabinet needs to be connected to mains electricity by a qualified electrician. Mains power (24 volts DC) allows installation of the heating option and thereby enables location outdoors.

AED compartment ventilation reduces excessive temperatures in the AED compartment, however in the absence of air conditioning, the AIVIA should be located in shade to avoid heat build-up from direct sunlight.

Dimensions

H = 423 mm, L = 388 mm, P = 201 mm, Weight = 3.5 kg

Warranty

AIVIA cabinets supplied after January 2012, have a two year factory warranty.

With your order will be supplied:

• AIVIA 210 cabinet
• Transformer

Please note : the wiring and material to attach the transformer are not supplied.
