DefiSign Pocket Plus Defibrillator Semi-Automatic

DefiSign Pocket Plus Defibrillator – Semi-automatic

The compact size of the DefiSign Pocket Plus Defibrillator Semi-Automatic does not compromise its functionality. This advanced defibrillator incorporates the latest technology and can be operated by anyone. It is always ready for use, continually recharging the energy required to deliver a shock. This feature significantly reduces response time in critical situations. The defibrillator's small design allows for effortless transportation in the provided matching bag and convenient storage in confined spaces. The LCD screen displays helpful images to guide users in administering the correct resuscitation techniques. Additionally, the defibrillator includes an automatic self-test feature, ensuring its reliability and consistent optimal performance.  

Who is the DefiSign Pocket Plus suitable for?

The inexperienced user

The DefiSign Pocket Plus Defibrillator is designed to be compact and lightweight, making it highly portable and suitable for activities where an defibrillator may not be readily available, such as hiking, cycling, or sailing. Inexperienced users particularly appreciate its user-friendly design. With a simple control panel, users can quickly grasp how to operate the defibrillator with just a glance. The electrodes are pre-connected, further simplifying the process. Additionally, the defibrillator is equipped with a child button that, when pressed, automatically activates child mode, eliminating the need for additional child electrodes. This streamlined approach minimizes the number of steps required, allowing rescuers to focus entirely on administering the correct resuscitation techniques. During CPR, the defibrillator offers further support in various ways, including:

• Audio support: Step-by-step instructions are provided audibly.
• Visual support: The LCD display shows relevant images to guide users.
• Metronome: A built-in metronome helps maintain the proper pace for chest compressions. 

LCD-display

The LCD display of the defibrillator intelligently adjusts its brightness based on the surrounding environment. As a result, the visual instructions displayed on the screen are consistently clear and easily visible. These visual instructions, presented in color, correspond to the audio guide, creating a synchronized and cohesive user experience. This synchronized approach of combining imagery and audio guidance significantly simplifies the usage of the defibrillator, especially for inexperienced users, even in highly stressful and critical situations. The clear and well-coordinated visual and audio instructions provide a user-friendly interface that enhances the ease and effectiveness of using the defibrillator during emergencies

The experienced user:  

The defibrillator boasts a unique combination of compact size, a large color LCD screen, and an optional ECG feature. This combination makes it highly suitable for professional use. The defibrillator's small size allows it to be conveniently utilized by emergency services en route to a victim. Moreover, it proves ideal for GPs and healthcare institutions where a professional defibrillator with advanced functionalities is often required. The compact size enables on-the-go use and makes it perfect for deployment in confined spaces such as ambulances, optimizing limited space. The defibrillator charges rapidly, within 16 seconds, significantly reducing response time during critical situations. Additionally, the ECG display provides valuable insight into the heart rhythm, which can be continuously monitored during deployment and reviewed later through a recorded session. Professional rescuers also have the option to utilize a rechargeable battery. This ensures less frequent battery replacements, which is particularly beneficial for defibrillators that are frequently used. Opting for a rechargeable battery can be a practical and cost-effective consideration in such cases.

ECG display

The optional ECG display provides professional users with enhanced insight into the patient's heart rhythm. It not only displays ECG readings but also records intervention data, offering doctors and rescuers a comprehensive overview of the patient's condition. This recorded data encompasses valuable information such as CPR quality, ECG curve, impedance curve, and events. To facilitate convenient access to the recorded files, the defibrillator is equipped with USB and Bluetooth functionalities. This enables easy viewing and analysis of the saved data, allowing medical professionals to closely evaluate the patient's progress and make informed decisions regarding further treatment.

Child button

Suitable for patients of all ages. The defibrillator has a child button that allows you to easily convert settings to child mode. No extra electrodes are needed for this, saving costs. 

Batteries

he order for the DefiSign Pocket Plus Defibrillator includes two batteries. Additionally, the defibrillator has an internal battery that needs to be replaced approximately every six years. The shelf life of the external batteries varies depending on the frequency of self-tests:

• If self-tests are conducted weekly, the external batteries have a shelf life of one year and six months.
• If self-tests are performed monthly, the external batteries have a shelf life of two years and six months.

It is important to keep track of the battery life and replacement schedule to ensure the defibrillator remains in optimal working condition and ready for immediate use when needed.

Included:

• 1x DefiSign Pocket Plus Defibrillator Semi-Automatic

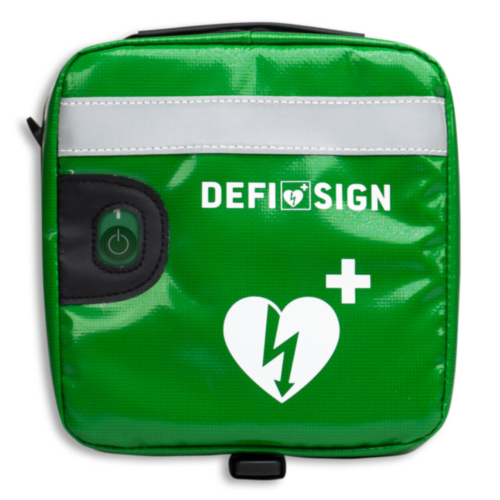

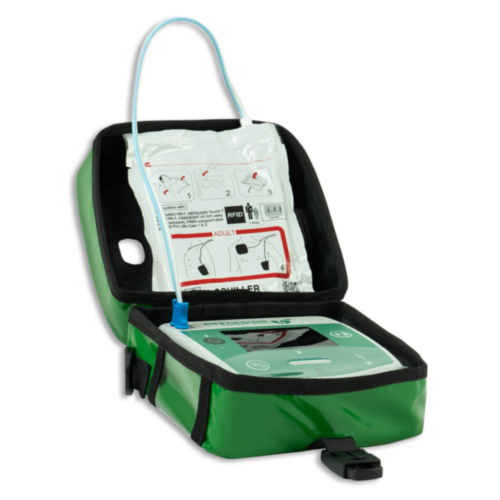

• 1x DefiSign Pocket Plus Bag
• 2x Batteries

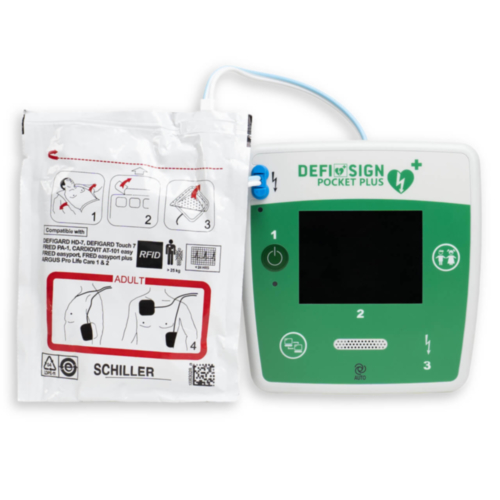

• 1 x Electrodes (preconnected)
• 1x User manual
• 10 years warranty in combination with a silver, gold, platinum service contract

Features

• IP 44 (dust and splash resistant)
• Shock: up to 200 Joules (Multipulse Biowave Shock)
• Data transmission: USB or Bluetooth
• Quality label: CG
• Automatic self-test
• Colour LCD display (automatic light adjustment)
• Metronome (HLW)

Dimensions and weight
Dimensions: 150 x 143 x 46 mm

Weight: 870 grams
